Construction

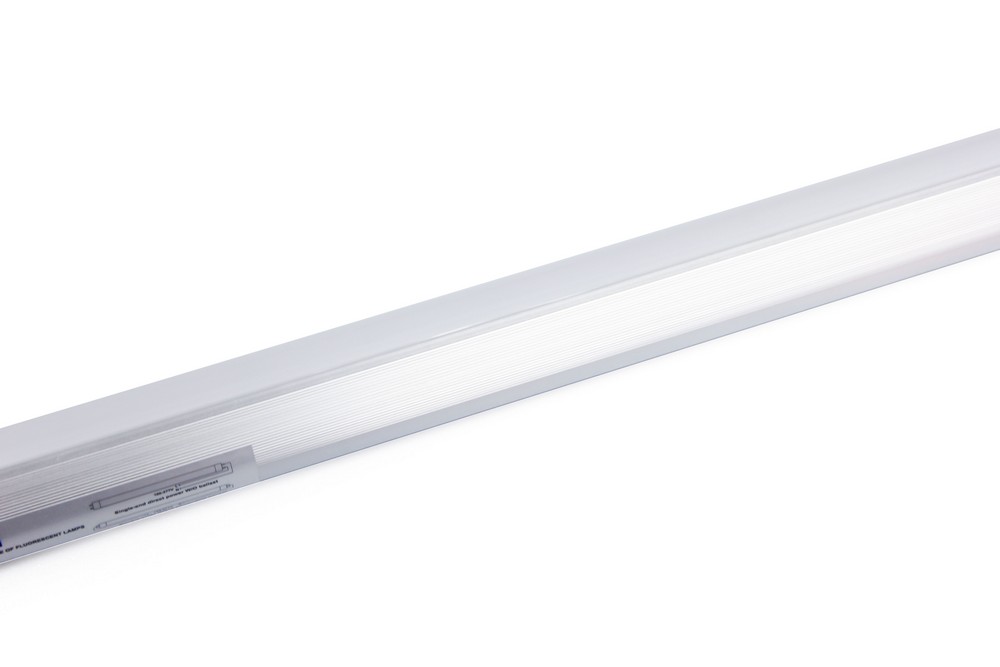

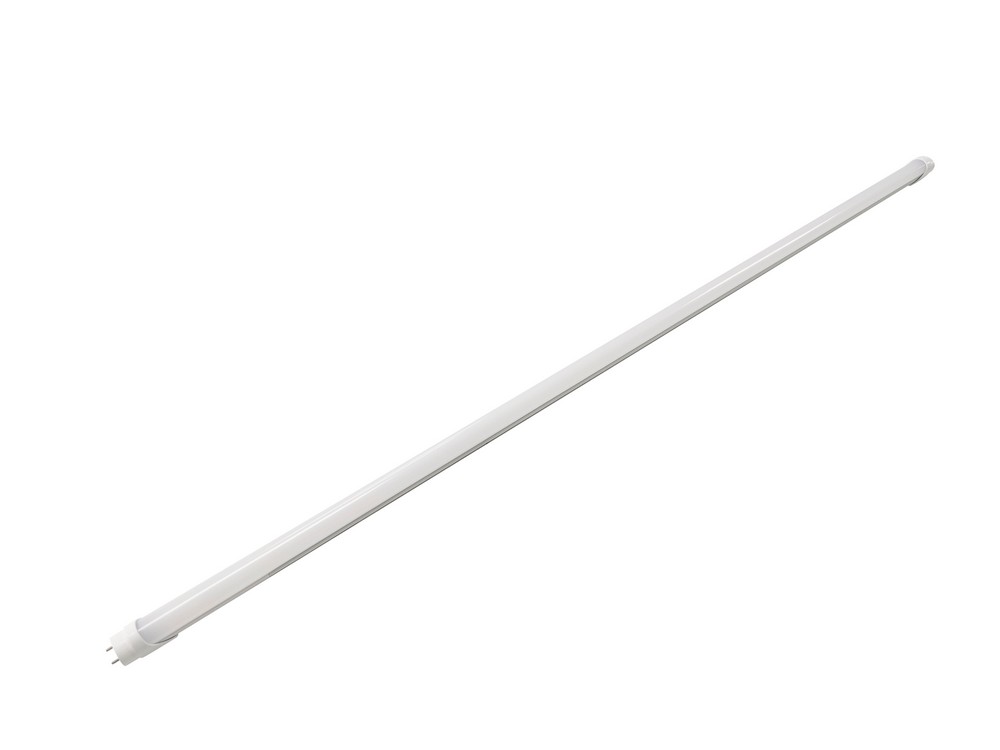

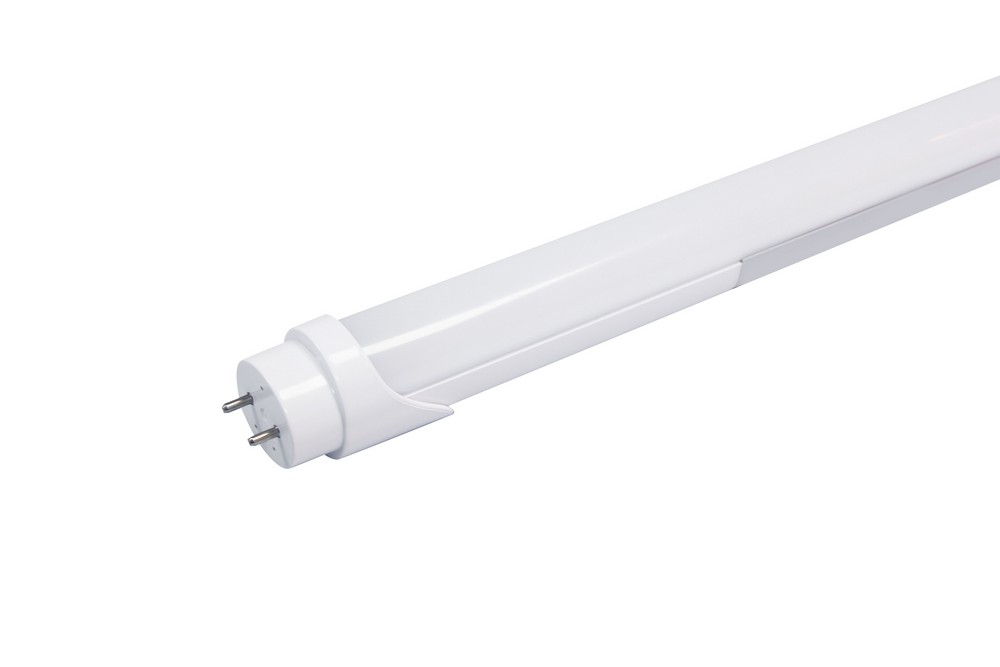

· 4FT T8 LED Lamp | 10/12/15/18/24W | 3500/4000/5000/
5700/6500K
· > 80 CRI
· High-Eficiency | Single-or Double-ended Line Voltage Wiring
· Housing: Aluminum+PC
Electrical
Input Voltage: 120-277Vac 50/60Hz

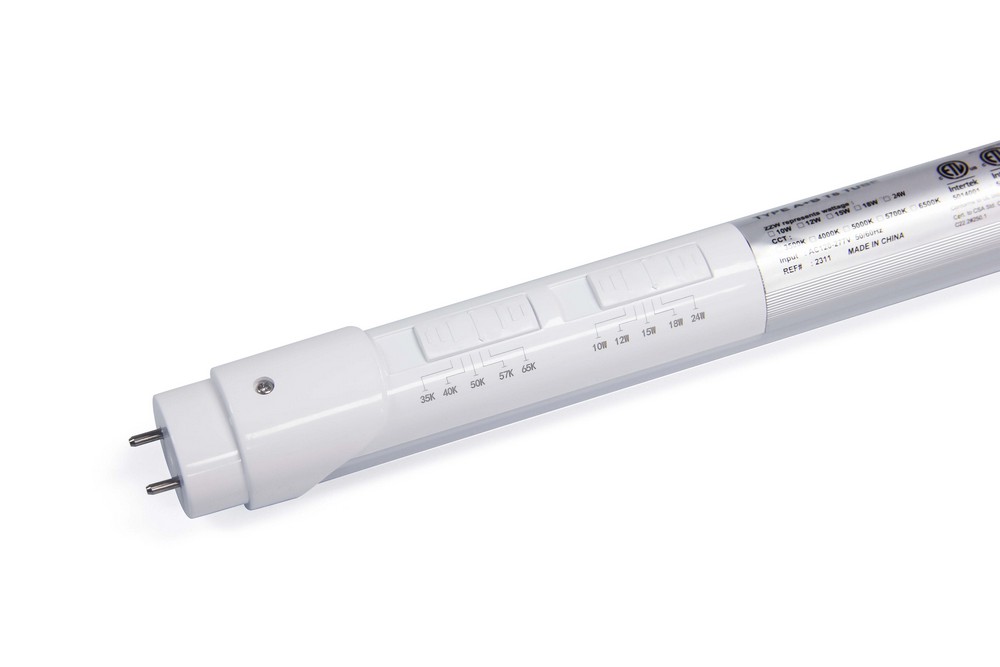

Color Select technology (3500/4000/5000/5700/6500K)
Frosted PC lens eliminates pixelation
Approximately 60% more energy-efcient than standard F32 T8 lamps
140+ Lumens per Watt
Applications
Offices, retail, schools, restaurants, healthcare, residential, and hospitality applications.
Listing
ETL Listed
Design Lights Consortium®(DLC) Standard.
Installation
Replacement for conventional fluorescent lamp
Single- or double-ended line voltage wiring
Operating temperature: −20ºC/−4ºF to 45ºC/113ºF
Storage temperature: −30ºC/−22ºF to 60ºC/140ºF
Warranty
• 5-year limited warranty
Product specification
| Specs at a Glance | * Nominal Wattage (Switchable) |
|---|---|
| Configuration | J-T8AB-4FT-24WS-CCT |
| Wattage (W)* | 10 / 12 / 15 / 18 / 24W Wattage Adjustable |
| Lumens (lm) | 1,400 – 3,080 lm |
| CCT (K) | 3500K / 4000K / 5000K / 5700K / 6500K (Switchable) |
| Efficacy (LPW) | Up to 140 lm/W |
| CRI | >80 |
| Input Voltage | 120-277VAC, 50/60Hz |
| Operating Temp | -20°C / -4°F to 45°C / 113°F |
| Certifications | ETL DLC 5.1 Standard |
| Warranty | 5-year limited warranty |
