$125.00

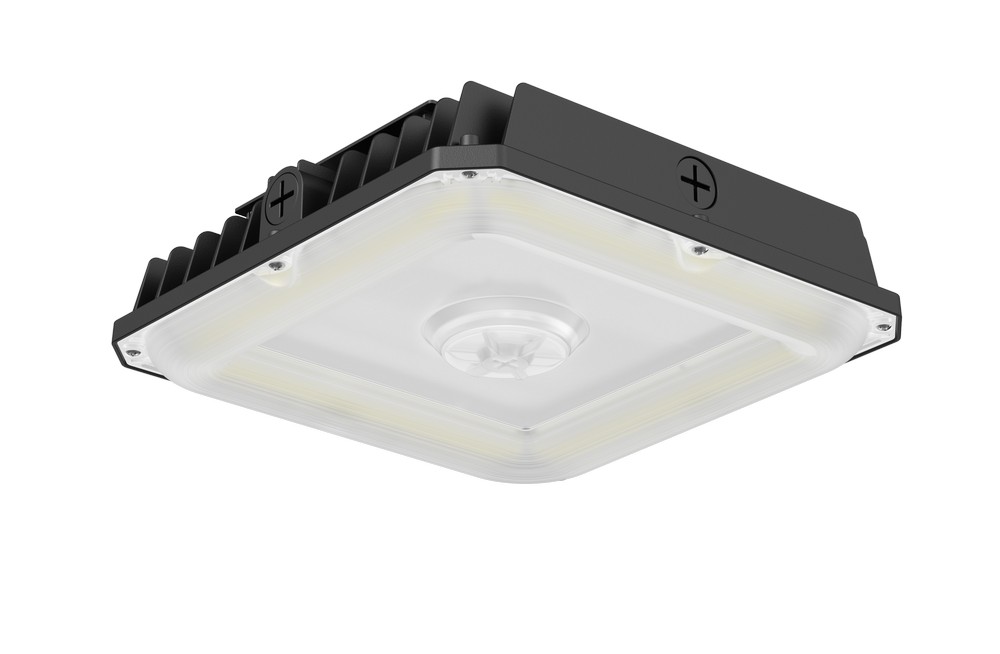

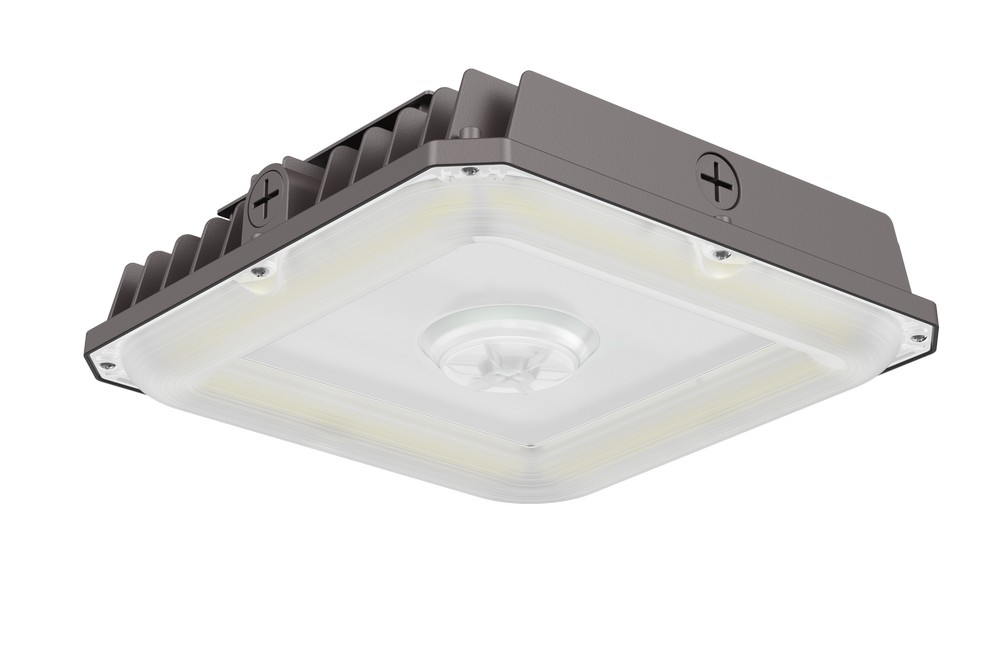

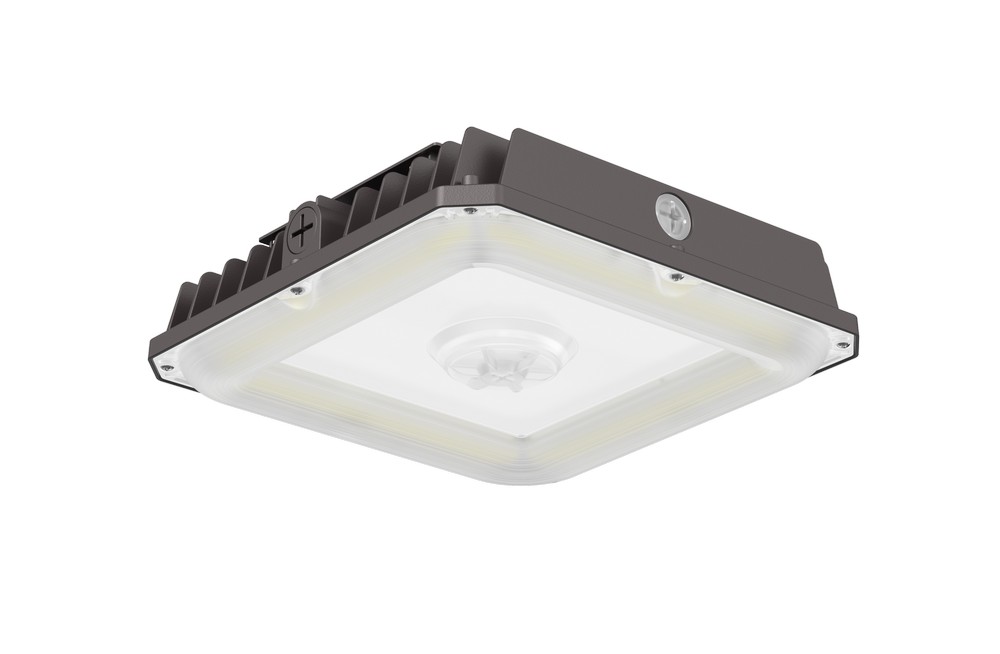

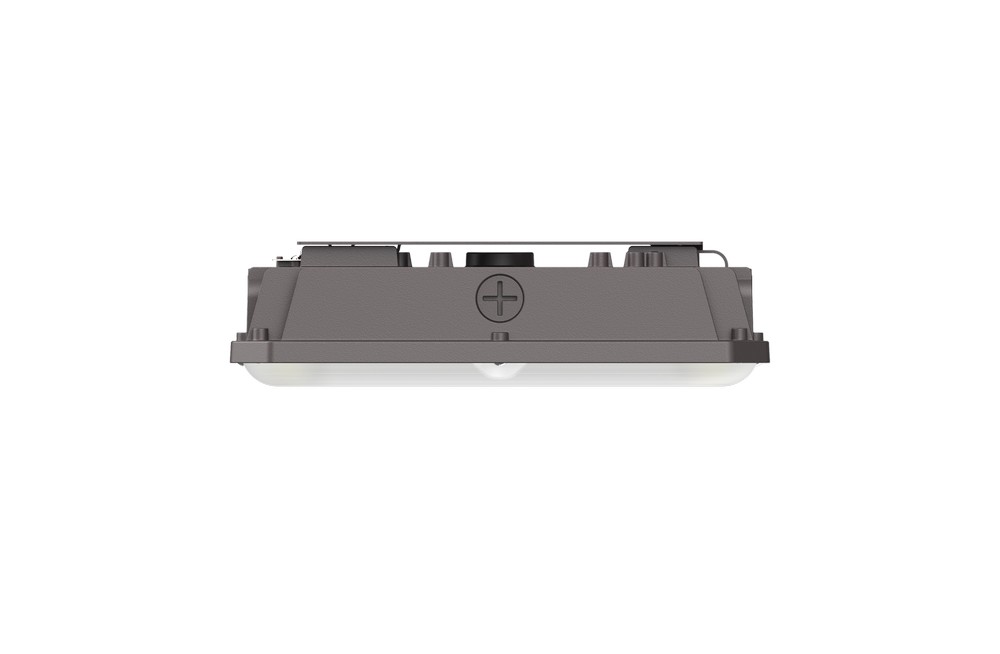

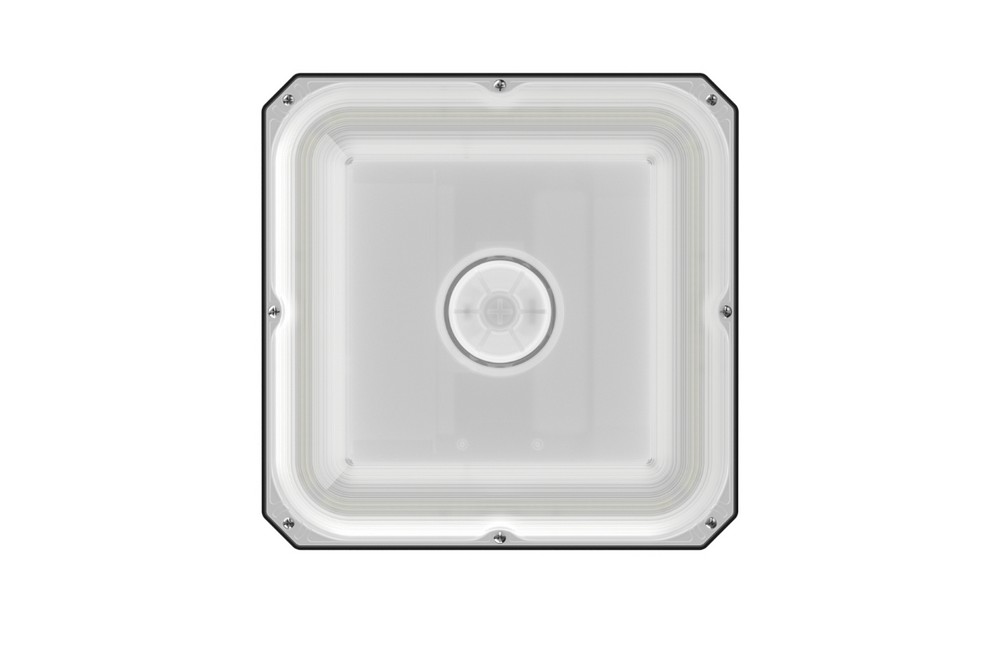

Model Number : J-CP100/130/150W-3CCT
Input Watts : 100/130/150W wattage adjustable
400 in stock
400 in stock
Construction
• Lens Material: Polycarbonate
• Housing: Die-cast Aluminum

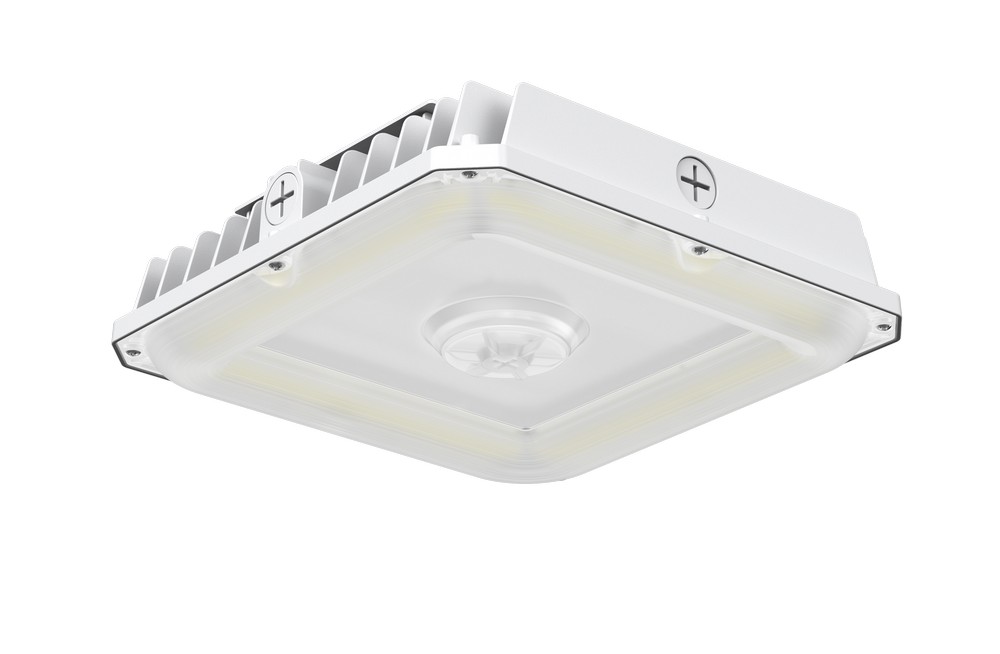

• Finish Colors: Black/ white/ brown
Electrical
• Working voltage 120-277V 50/60Hz
• Operating Temperature Range: -30°C to +50°C
Note: Operating with emergency battery temperature range:
5°C to 45°C (+41˚F – + 113˚F).
Performance
• IP Rating: IP65

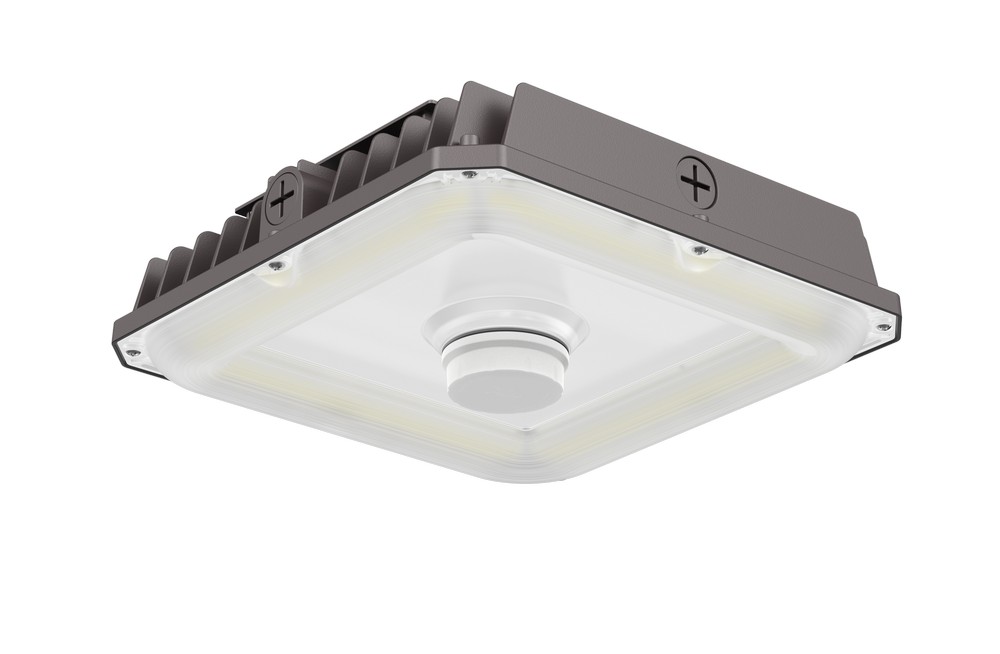

• Sensor: Microwave motion sensor/ PIR sensor photocell
• THD: <20% • Power Factor: ≥0.95 • High efficacy up to 135LM/W • Life Time >50,000Hrs
• Surge Protection: LN-PG :5KV, L-N:4KV
Applications
Parking garages, Canopies, Storage areas, Outdoor aisles, Walkways, Entryways
Installation

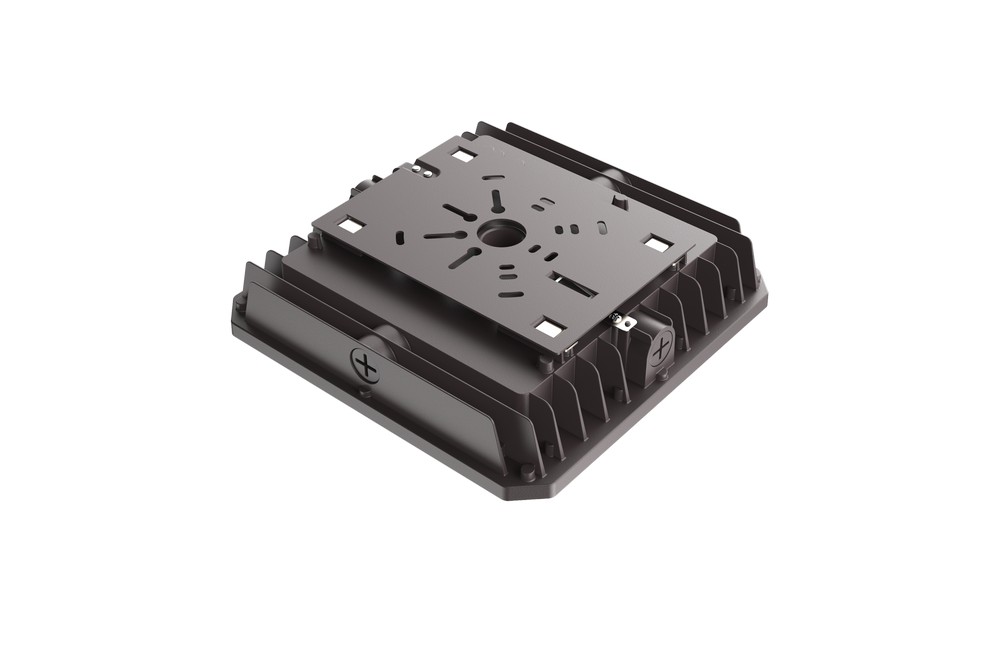

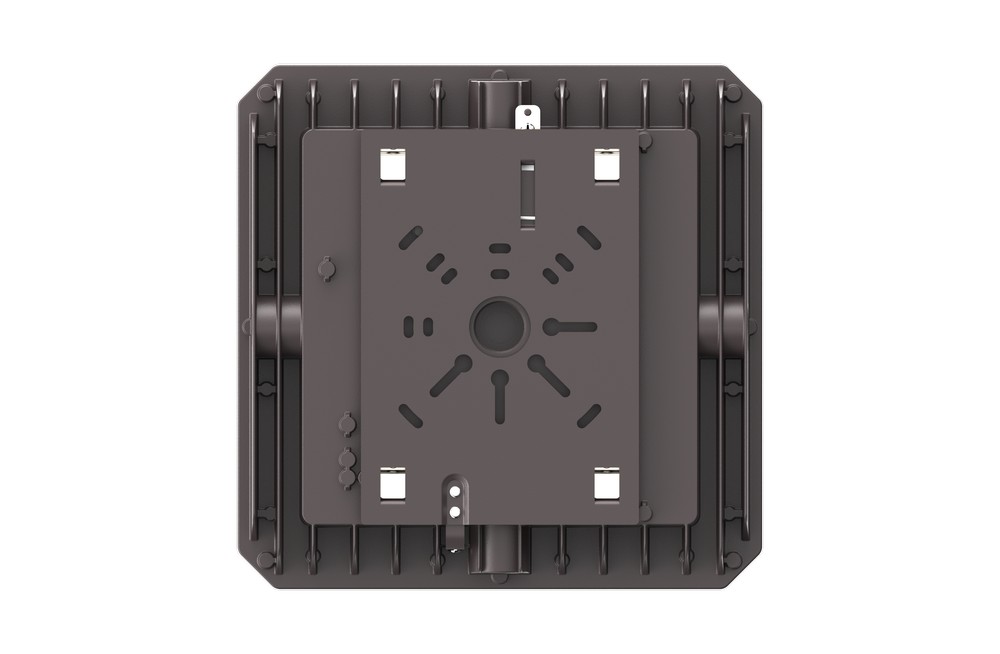

Pendant mounting, surface mounting
Installation
• UL listed.
• DesignLights Consortium®(DLC)Premium
Warranty
• 5-year limited warranty
| Specs at a Glance | * Nominal Wattage (Switchable) |
|---|---|
| Configuration | J-CP100/130/150W-3CCT |
| CCT (K) | 3000K 4000K 5000K Color Tunable |
| Wattage (W)* | 150W / 130W / 100W wattage adjustable |
| Lumens (lm) | 150W= 15900 lumens 130W= 16900 lumens 100W= 13000 lumens |
| Efficacy (LPW) | Up to 135 lm/W |
| CRI | >80 |
| Input Voltage | 120-277V |
| Operating Temp | -30°C – 50°C |
| Certification | UL & DLC 5.1 premium |
| Warranty | 5 year limited warranty |
