Price range: $95.00 through $135.00
Accessories: HB01DMS-A Microwave Sensor 20.00
Housing
The compact design save labor cost and improves
installation efciency.
Material: 1Die-Casting Aluminumfor 300W
Linear highbay.
Electrical
Universal 120-277 VAC ,Lifud Driver,
Standard with 0-10V dimming,
Wattage adjustable: 165W/150W/130W,
220/165/110W, 300/275/255W,
CCT: 4000K/5000K,
Lumileds Chip, CRI >80.

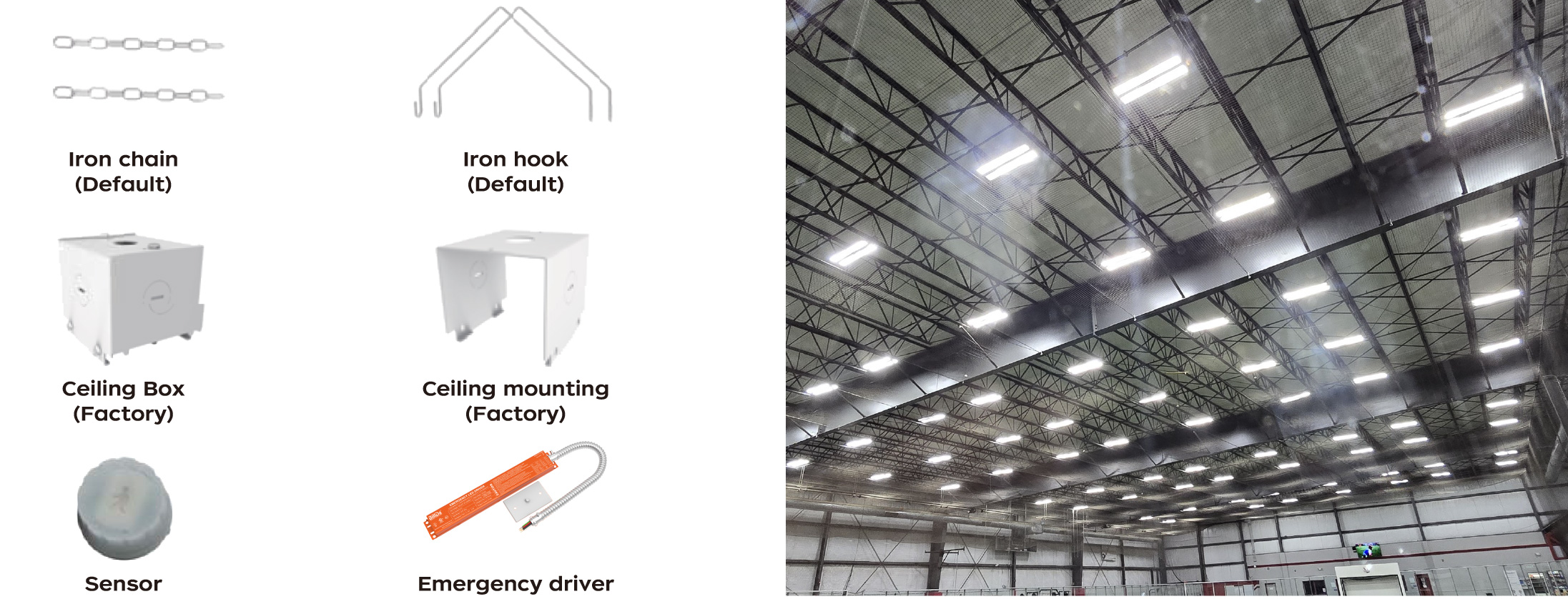

Installation
Steel wire rope mount (default）
Listing
ETL & DLC 5.1.
Applications
meets most ofce ceiling application needs,
It is ideal for ofce spaces,
supermarkets, and meeting rooms.
Beam Angle:
90 Degree.
| Model No. | Watts | Lumens | CCT | Input Voltage | Length |
|---|---|---|---|---|---|
| J-LHB09-165WBML1A2 (Sensor base) |
165/150/130W | Max. 23,100lm | 4000/5000K | AC 120-277 | 1ft x 2ft |
| J-LHB09-220WBML1A2 | 220/165/110W | Max 38000lm | 4000/5000K | AC 120-277 | 1ft x 2ft |
| J-LHB09-300WBML1A2 | 300/275/255W | Max 42000lm | 4000/5000K | AC 120-277 | 1ft x 2ft |
| Model Number | J-LHB09-165WBML1A2 (Sensor base), J-LHB09-220WBML1A2, J-LHB09-300WBML1A2 |
|---|---|
| Input Watts | 165/150/130W, 220/165/110W, 300/275/255W |
