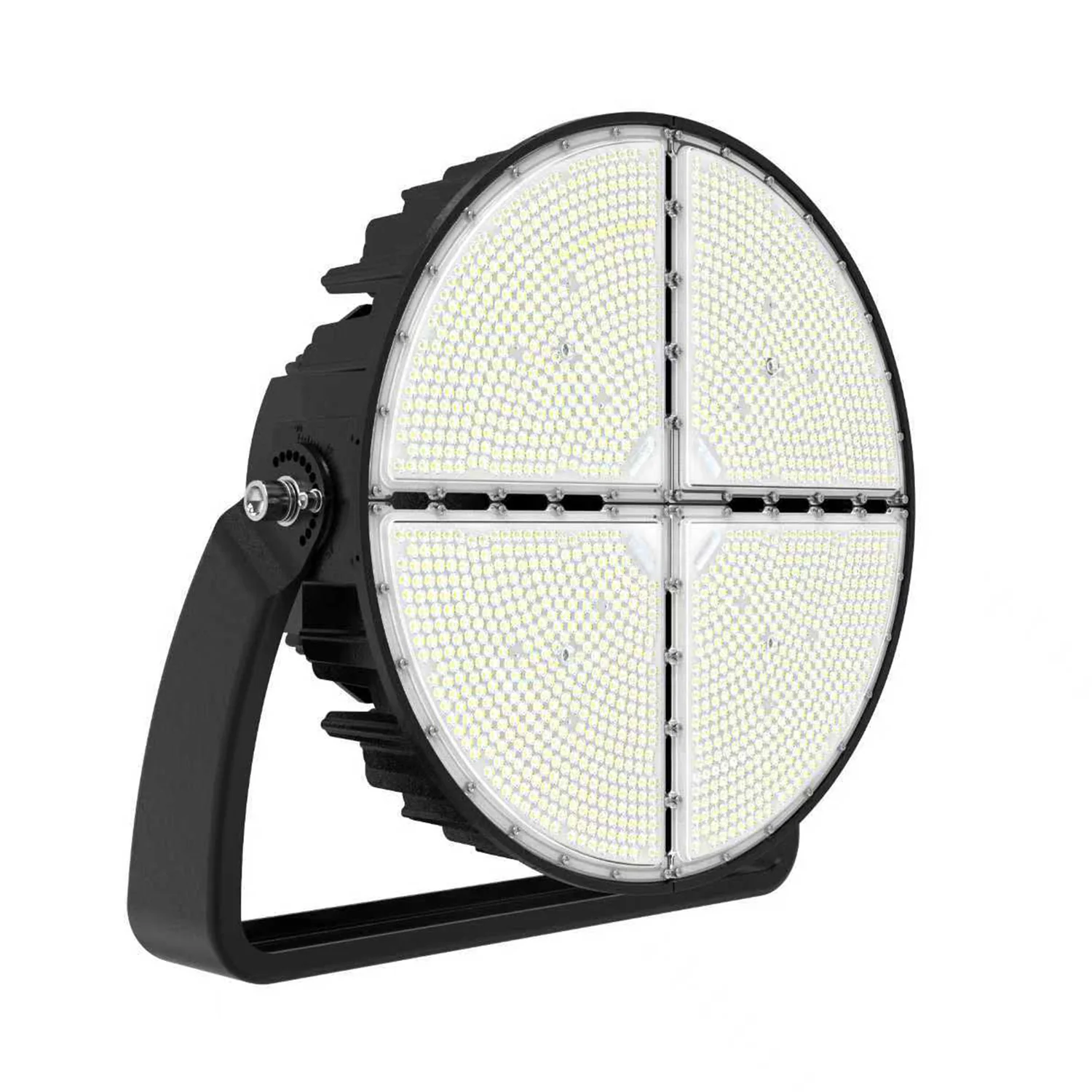

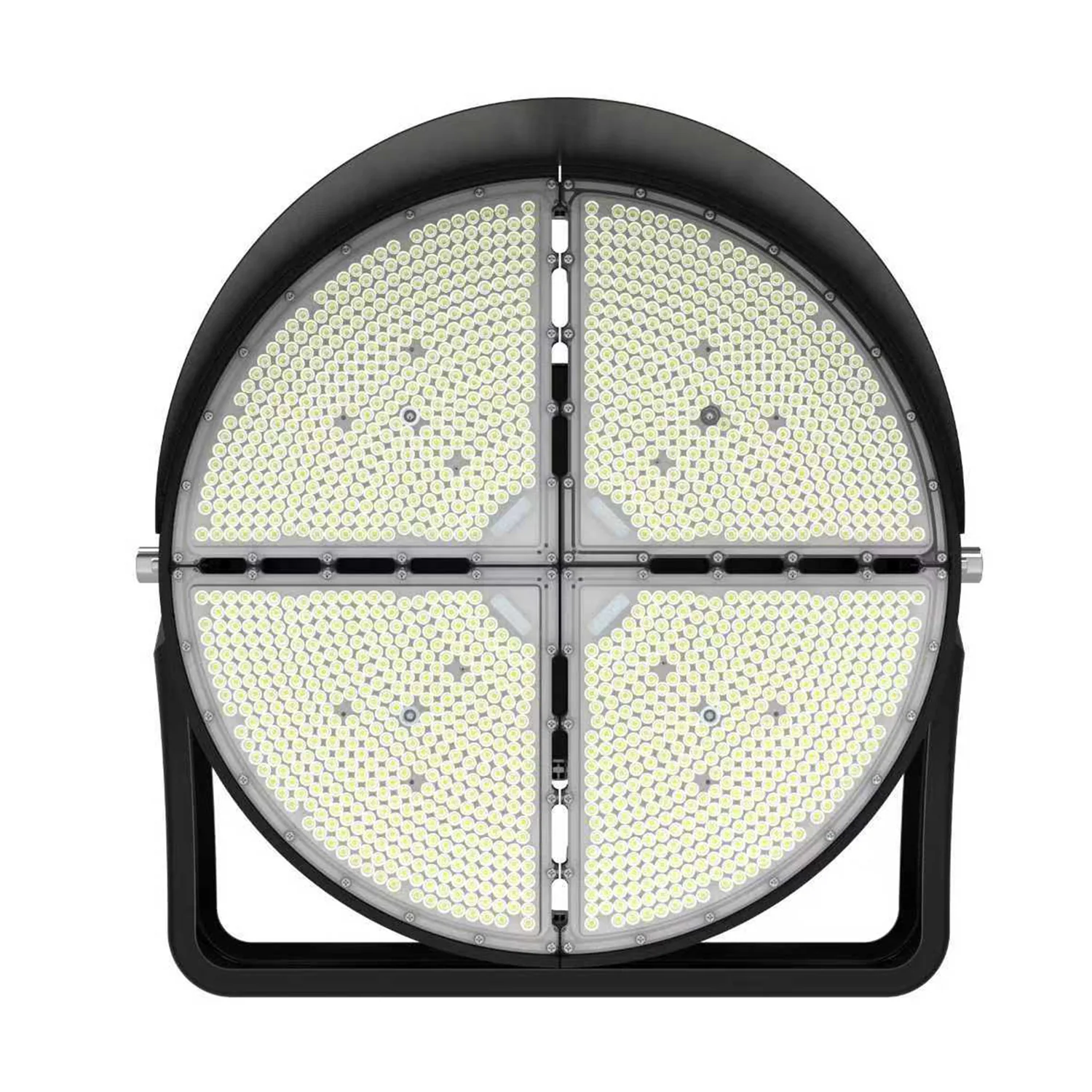

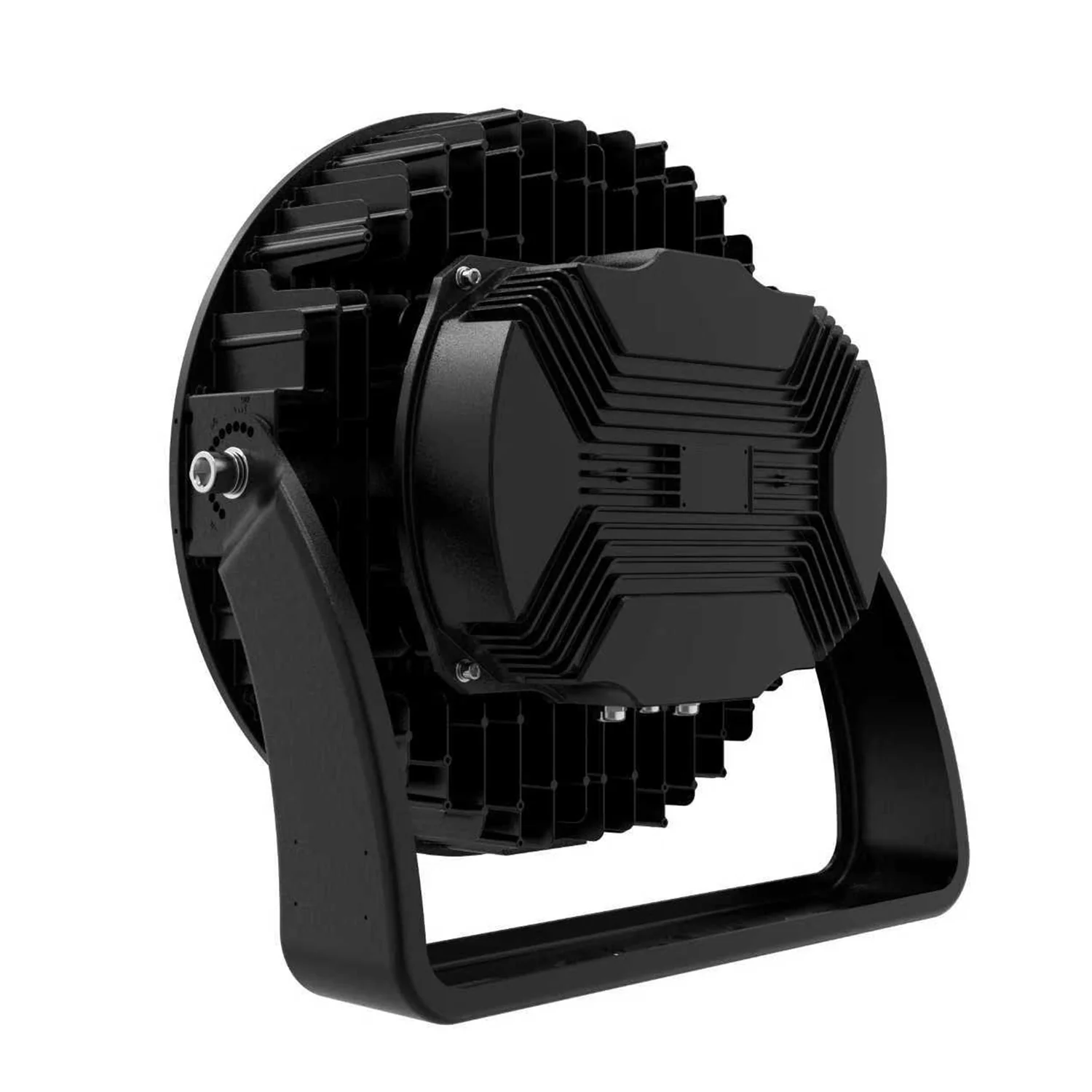

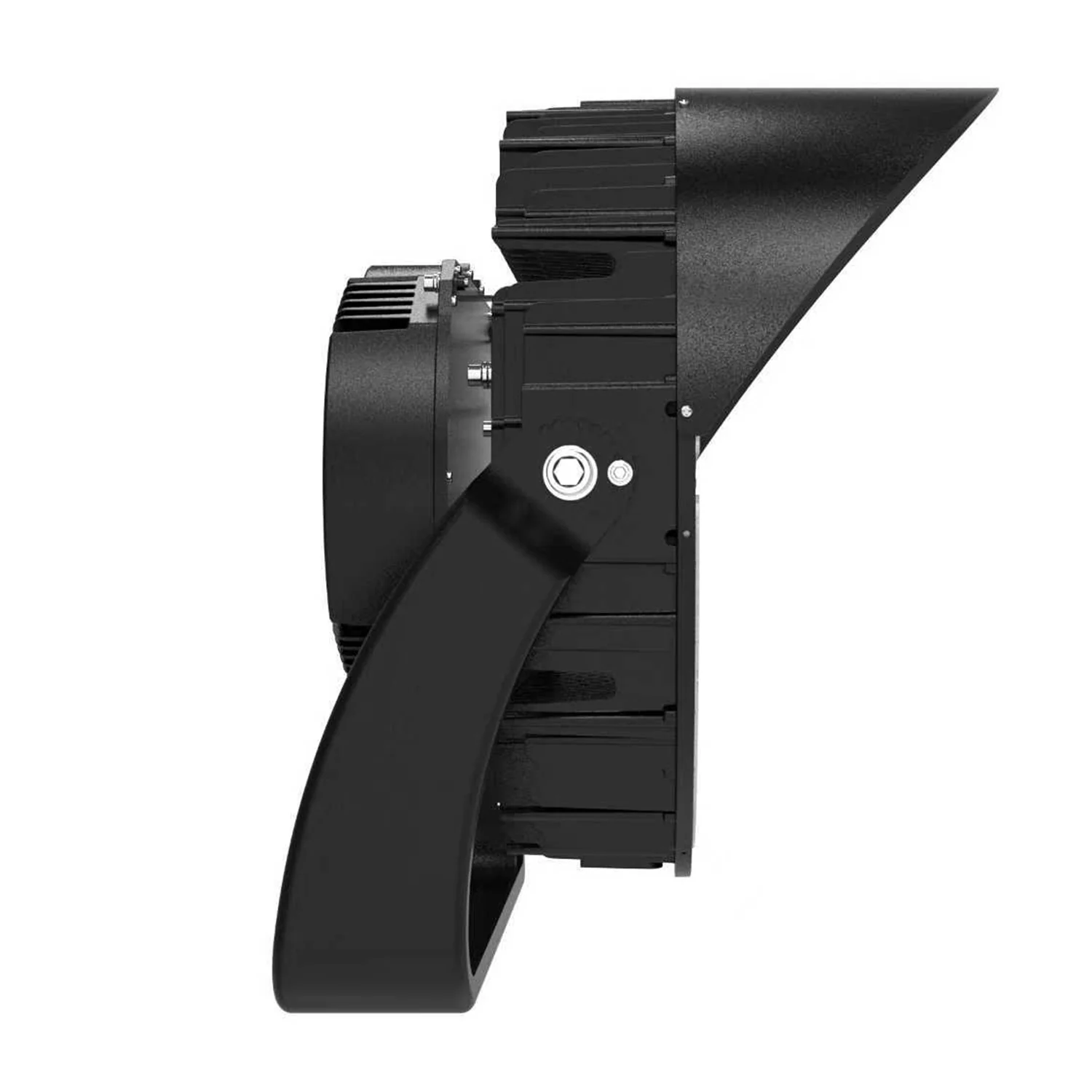

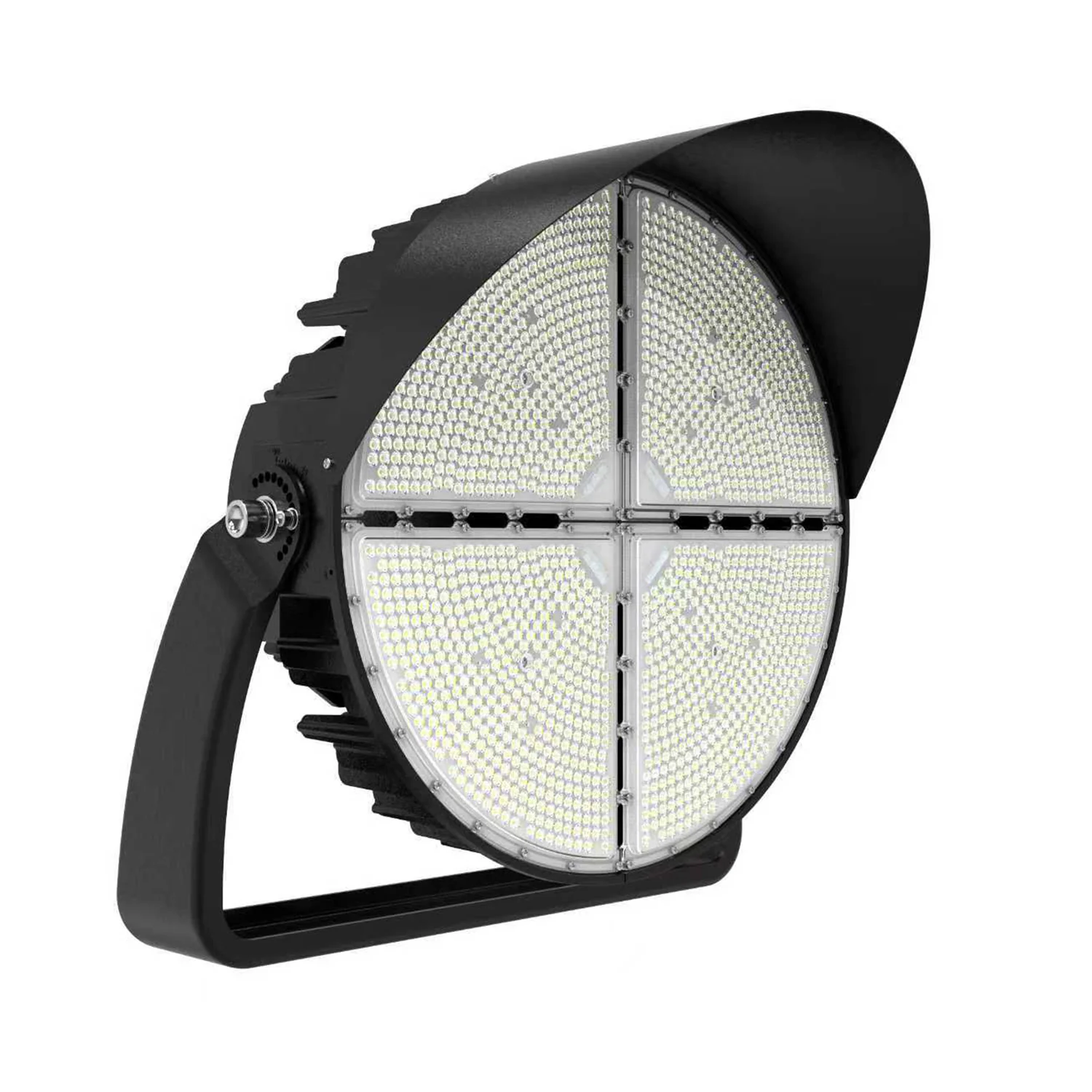

LED Sport Lighting SPL-1200/1000/800W-480V50K

$1,800.00

Beam Angle Adjustable
LED Stadium Light – AC 200-480V

100 in stock

100 in stock

SKU SPL-1200/1000/800W-480V50K Category

Description

CONSTRUCTION:

Engineered by our in-house R&D team, this high-performance sports luminaire delivers exceptional brightness, superior uniformity, and advanced glare control, ensuring optimal visibility for athletes, spectators, and broadcast-level applications.

Built with a robust, solid, and long-lasting housing, the fixture is designed to withstand the demanding conditions of professional sports environments. Its wind-resistant structural design and IP66 wet-location rating ensure reliable operation in harsh outdoor settings, including stadiums, athletic fields, ports, and airport aprons.

ELECTRICAL:
Input voltage: 200–480V
Operating temperature range: -40°C to 45°C

OPTICAL SYSTEM:
High-brightness SMD3030 LED chips from renowned brands
Selectable beam angles: 30° / 45° / 60°

INSTALLATION & MOUNTING:
U Bracket mounting / Slip filter Pole mounting

WARRANTY:
5-year limited warranty end-user environment and application. Actual performance may vary depending on end-user environment and application

Product Features:

The Ledsion J Series 800/1000/1200W LED Stadium Light gives you full on-site control in one powerful fixture. Instantly select wattage (800W/1000W/1200W) and beam angle (30°/45°/60°) with simple switches — no extra SKUs or guesswork.

Delivering up to 186,000 LM at 155 LM/W, it features a die-cast aluminum housing, advanced heat dissipation, anti-glare optics, and rugged weather-tight construction built to handle the harshest outdoor conditions. 200–480V input, DLC & UL listed, and backed by a 5-year warranty. The ultimate high-performance solution for stadiums, sports fields, and large-area lighting.

Specifications:
  • Model: SPL-1200/1000/800W-480V50K
  • Power Adjustable: 800W / 1000W / 1200W
  • Lumens Output: 124,000 / 155,000 / 186,000 LM
  • Efficiency: 155 LM/W
  • CCT: 5000K
  • CRI: >70
  • Beam Angle: 30° / 45° / 60° (adjustable)
  • Input Voltage: 200–480V AC
  • Power Factor: 0.95
  • Operating Temperature: -40°C ~ +45°C
  • Mounting: Bracket / Pole mounting
  • Driver: Inventronics / Moso / Sosen
  • Certifications: UL, CUL, DLC, FCC
  • Warranty: 5 Years
  • Equivalent: 1600–3600W MH/HPS
Applications
  • Stadiums & Sports Facilities
  • Airports & Shipping Yards
  • Parking Lots & Public Squares
  • Industrial Facilities & Container Loading Areas
  • High-Mast Roadway Lighting
  • Railways & Ports & Harbors
